CABLE CLAMPS
|
|
P/N
|
DESCRIPTION
|
|
8000
|
CLAMP, CABLE, BLACK STEEL 22"
|
|
8001
|
CLAMP, CABLE, BLACK STEEL 32"
|
|
8002
|
CLAMP, CABLE, SS304, 22"
|
|
8003
|
CLAMP, CABLE, SS304, 32"
|
|
8004
|
CLAMP, CABLE, SS304, 42"
|
|

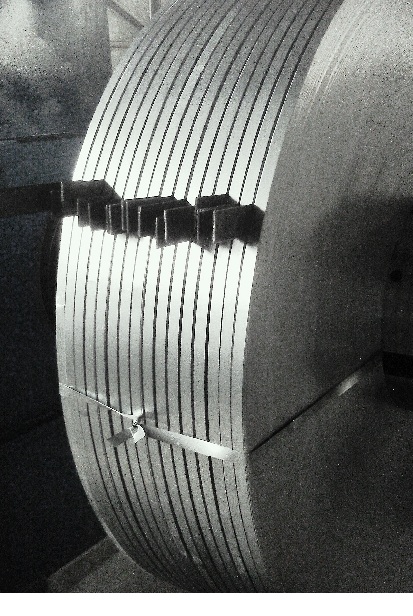

COILED STRAPPING TAPE
|
|
P/N
|
DESCRIPTION
|
|
8005
|
COILED STRAPPING TAPE, SS304, .025" X 7/8"
|
|
8006
|
COILED STRAPPING TAPE, SS304, .025" X 3/4"
|
|
8007
|
COILED STRAPPING TAPE, SS316, .025" X 7/8"
|
|
8008
|
COILED STRAPPING TAPE, SS316, .025" X 3/4"
|
|
8009
|
COILED STRAPPING TAPE, MONEL, .025" X 7/8"
|
|
8010
|
COILED STRAPPING TAPE, MONEL, .025" X 3/4"
|
|
ESP Cable Armor Materials
|
|
P/N
|
Materials
|
Size
|
Tensile Strength
|
Elongation
|
|
8011
|
Galvanized Steel (DC52D+Z)
|
12.7 x 0.5 mm
|
¨R310 Mpa
|
¨R32%
|
|
8012
|
Galvanized Steel (DC52D+Z)
|
12.7 x 0.635 mm
|
¨R310 Mpa
|
¨R32%
|
|
8013
|
Galvanized Steel (DC52D+Z)
|
12.7 x 0.86 mm
|
¨R310 Mpa
|
¨R32%
|
|
8014
|
Stainless Steel 316L
|
12.7 x 0.5 mm
|
¨R480 Mpa
|
33-45%
|
|
8015
|
Stainless Steel 304
|
12.7 x 0.5 mm
|
¨R480 Mpa
|
33-45%
|
|
8016
|
Monel K-400
|
12.7 x 0.38 mm
|
¨R520 Mpa
|
¨R35%
|

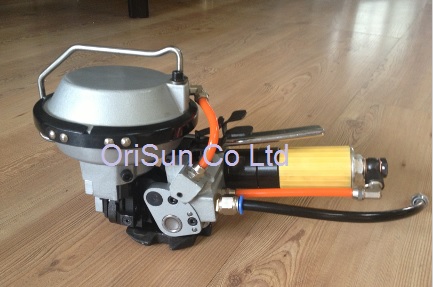

Pneumatic Tape Banding Tool
|
Model:
|
A480/KZ-19/16
|
|
Air Pressure:
|
0.42 ¨C 0.6 MPa
|
|
Fit Steel Strap Width:
|
13; 16; 19mm
|
|
Fit Steel Strap Thickness:
|
0.38 ¨C 0.8mm
|
|
Tension Speed:
|
¡Ý5.5m/min
|
|
Max. Tension
|
4.9kN/0.6MPa
|
|
Net Weight:
|
5 kg
|
|
