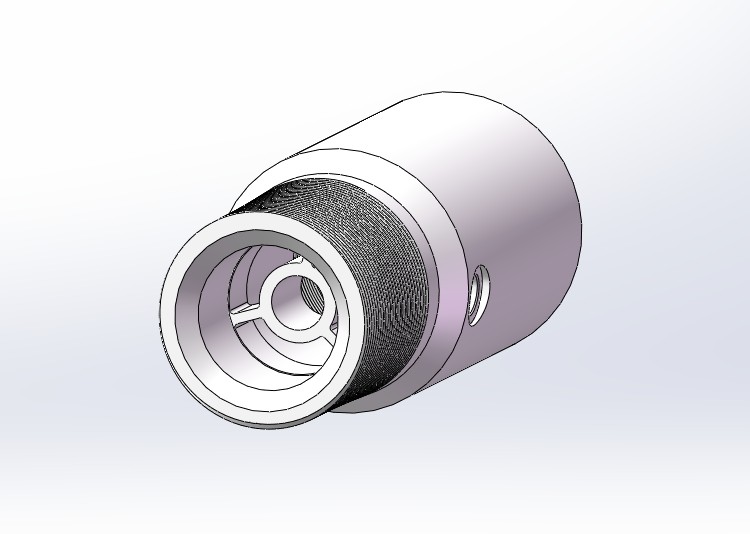

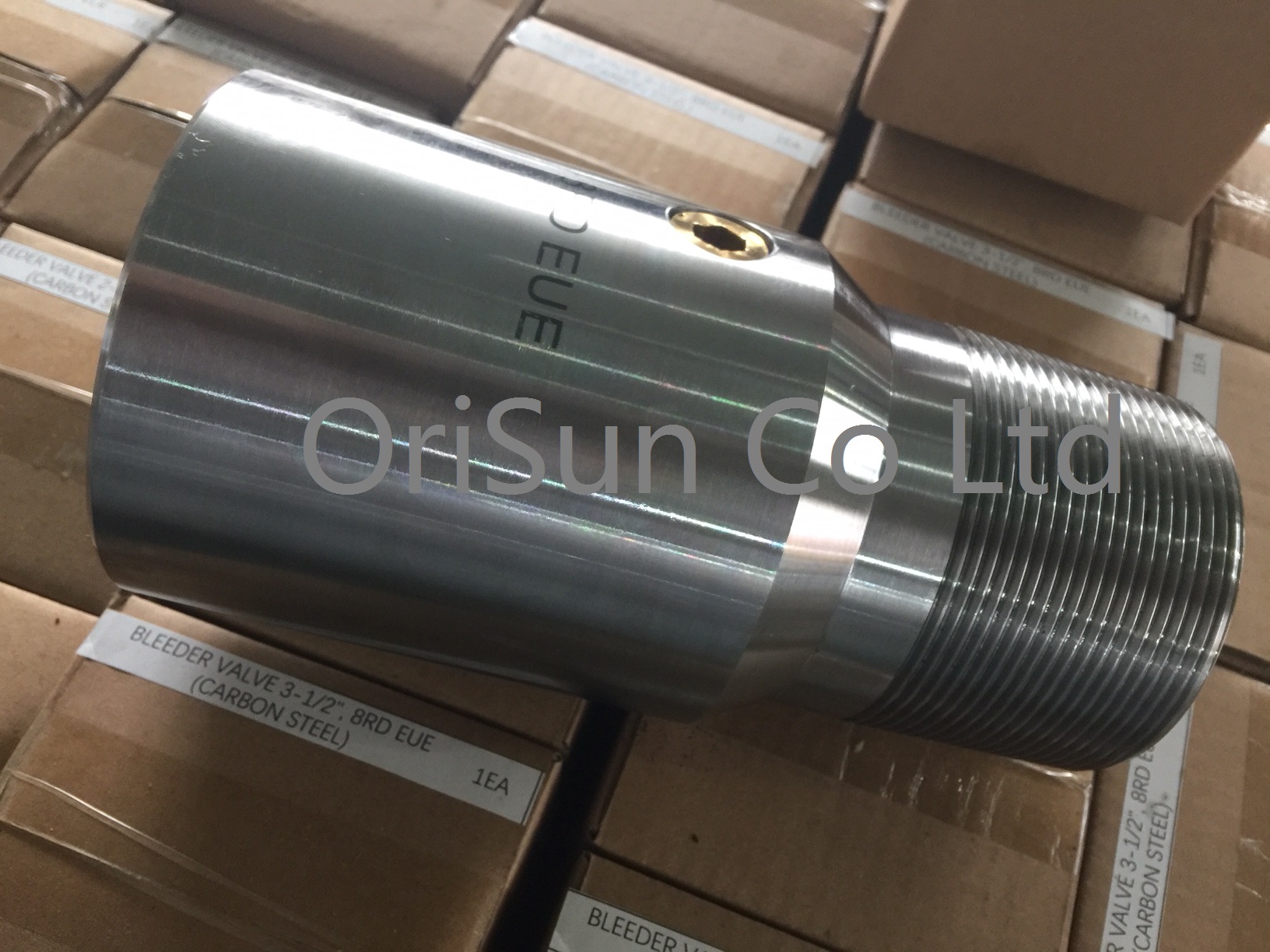

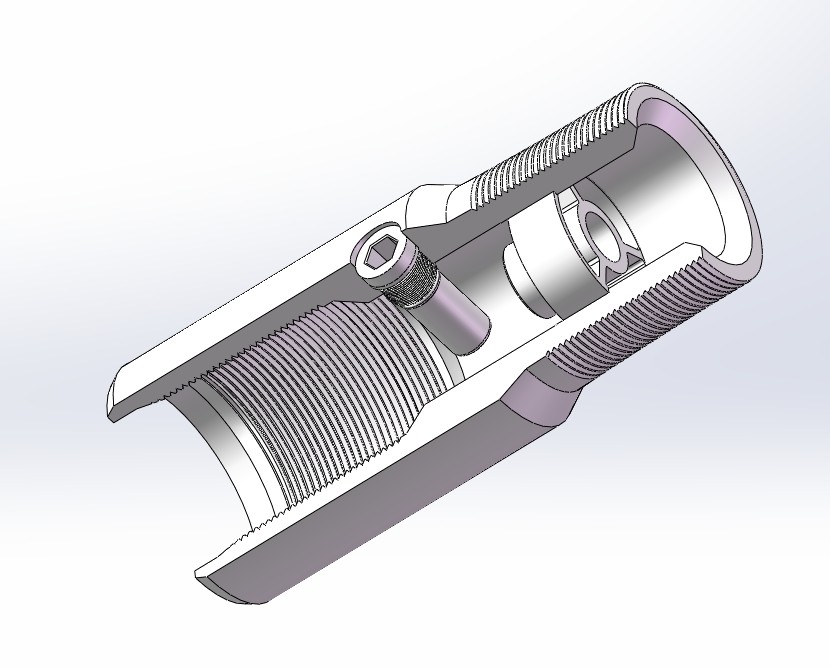

The bleeder valve is normally installed one joint above the check valve. The drain valve has a small drain plug in it, and dropping a bar inside the tubing string will break it and allow the tubing to drain.

|
Size |
Materials |
Length (Ft) |
Weight (Lbs) |
|
2-3/8" OD 8RD EUE Tubing |
SST420 |
0.6 |
8 |
|
2-3/8" OD 8RD EUE Tubing |
CS10450 |
0.6 |
8 |
|
2-3/8" OD 10RD Reg Tubing |
SST420, |
0.6 |
8 |
|
2-3/8" OD 10RD Reg Tubing |
CS10450 |
0.6 |
8 |
|
2-7/8" OD 8RD EUE Tubing |
SST420 |
0.7 |
13 |
|
2-7/8" OD 8RD EUE Tubing |
CS10450 |
0.7 |
13 |
|
3-1/2" OD 8RD EUE Tubing |
SST420 |
0.8 |
17 |
|
3-1/2" OD 8RD EUE Tubing |
CS10450 |
0.8 |
17 |
|
3-1/2" OD 10RD Reg Tubing |
SST420 |
0.8 |
17 |
|
3-1/2" OD 10RD Reg Tubing |
CS10450 |
0.8 |
17 |
|
4-1/2" OD 8RD EUE Tubing |
SST420 |
0.8 |
23 |
|
4-1/2" OD 8RD EUE Tubing |
CS10450 |
0.8 |
23 |
|
4-1/2" OD 10RD Reg Tubing |
SS420 |
0.8 |
23 |
|
4-1/2" OD 10RD Reg Tubing |
CS10450 |
0.8 |
23 |
|
