Cable QYEE400
QYEE400

Submersible Cable QYEE400 Flat

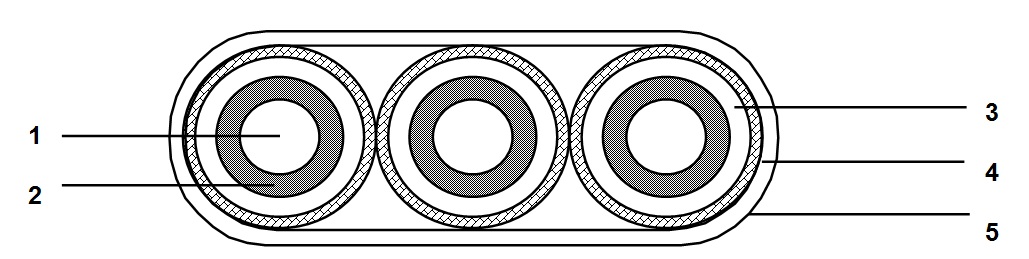

1. Conductor  2. Insulation 3. Jacket 4. Tape or braid 5. armor

Size
Conductor
Resistance
Overall Dimensions
Weight
(AWG)

r/k-ft@20°C
Ω/km@20℃
in
mm
[lb/ft]
[kg/m]

QYEL-400-5kV - Flat
1
Solid
0.13
0.43
0.68 ×1.75
17.35 ×44.55
2.42
3.60
1
7 Strand Compacted
0.13
0.44
0.69 ×1.78
17.60 ×45.30
2.46
3.66
2
Solid
0.16
0.54
0.65 ×1.66
16.52 ×42.12
2.16
3.21
2
7 Strand Compacted
0.17
0.55
0.67 ×1.70
16.90 ×43.20
2.22
3.30
4
Solid
0.26
0.84
0.60 ×1.50
15.19 ×38.07
1.76
2.62
6
Solid
0.42
1.39
0.56 ×1.37
14.12 ×34.86
1.40
2.08








QYEL-400-6kV - Flat
1
Solid
0.13
0.43
0.70 ×1.80
17.75 ×45.75
2.48
3.69
1
7 Strand Compacted
0.13
0.44
0.74 ×1.84
18.75 ×46.75
2.52
3.75
2
Solid
0.16
0.54
0.78 ×1.88
19.75 ×47.75
2.22
3.30
2
7 Strand Compacted
0.17
0.55
0.82 ×1.92
20.75 ×48.75
2.28
3.39
4
Solid
0.26
0.84
0.86 ×1.96
21.75 ×49.75
1.82
2.71
6
Solid
0.42
1.39
0.90 ×2.00
22.75 ×50.75
1.46
2.17



Submersible Cable QYEE400 Flat

Size
Conductor
Resistance
Overall Dimensions
Weight
(AWG)

r/k-ft@20°C
Ω/km@20℃
in
mm
[lb/ft]
[kg/m]
QYEE-400-5kV - Round
1
Solid
0.14
0.46
1.39
35.33
1.88
2.80
1
7 Strand Compacted
0.14
0.47
1.41
35.87
1.96
2.92
2
Solid
0.17
0.57
1.32
33.58
1.65
2.45
2
7 Strand Compacted
0.18
0.58
1.35
34.36
1.75
2.60
4
Solid
0.27
0.87
1.21
30.68
1.29
1.92
6
Solid
0.43
1.41
1.11
28.07
0.96
1.43








QYEE-400-6kV - Round
1
Solid
0.14
0.46
1.42
36.19
1.94
2.88
1
7 Strand Compacted
0.14
0.47
1.45
36.73
2.01
2.99
2
Solid
0.17
0.57
1.36
34.44
1.69
2.52
2
7 Strand Compacted
0.18
0.58
1.39
35.22
1.79
2.67
4
Solid
0.27
0.87
1.24
31.54
1.34
1.99
6
Solid
0.43
1.41
1.14
28.93
1.00
1.49
